How to Tram a Milling Machine

Loosen the vise

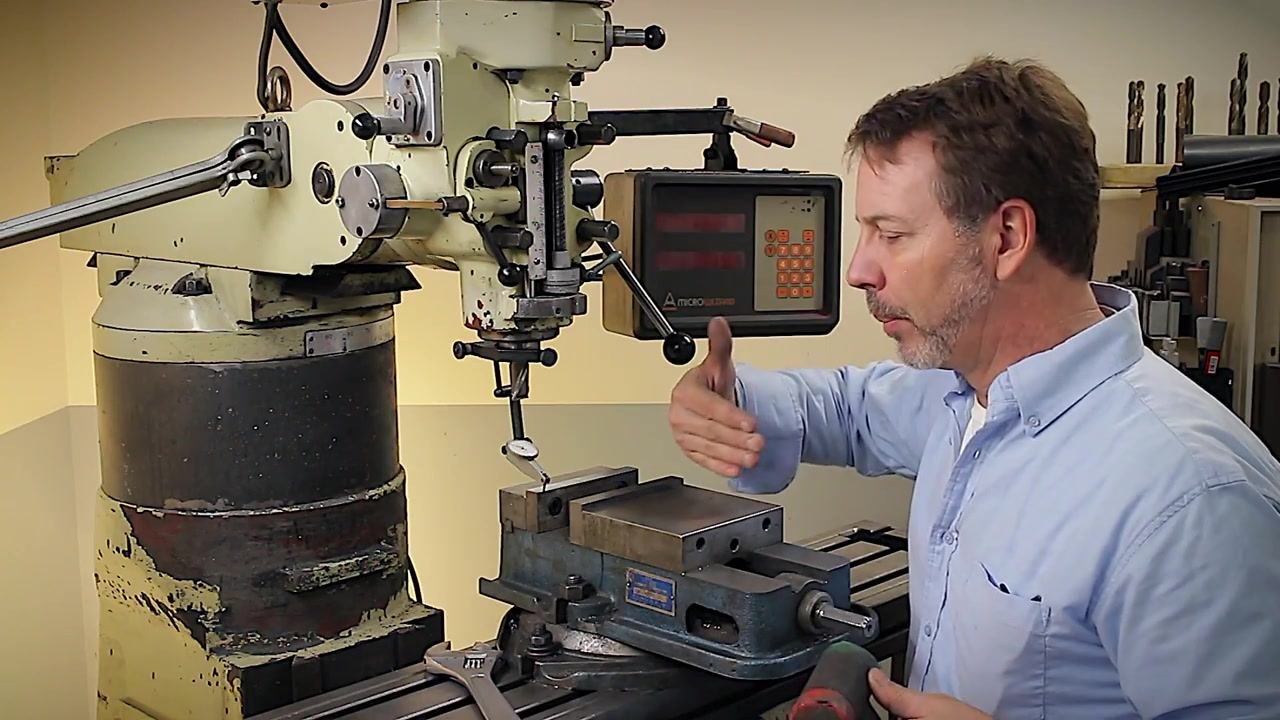

Loosen the vise from the milling table before beginning the alignment. A rotary base is not required for this process; the T-slots on a standard table give you enough movement to make adjustments.

Set up the test indicator

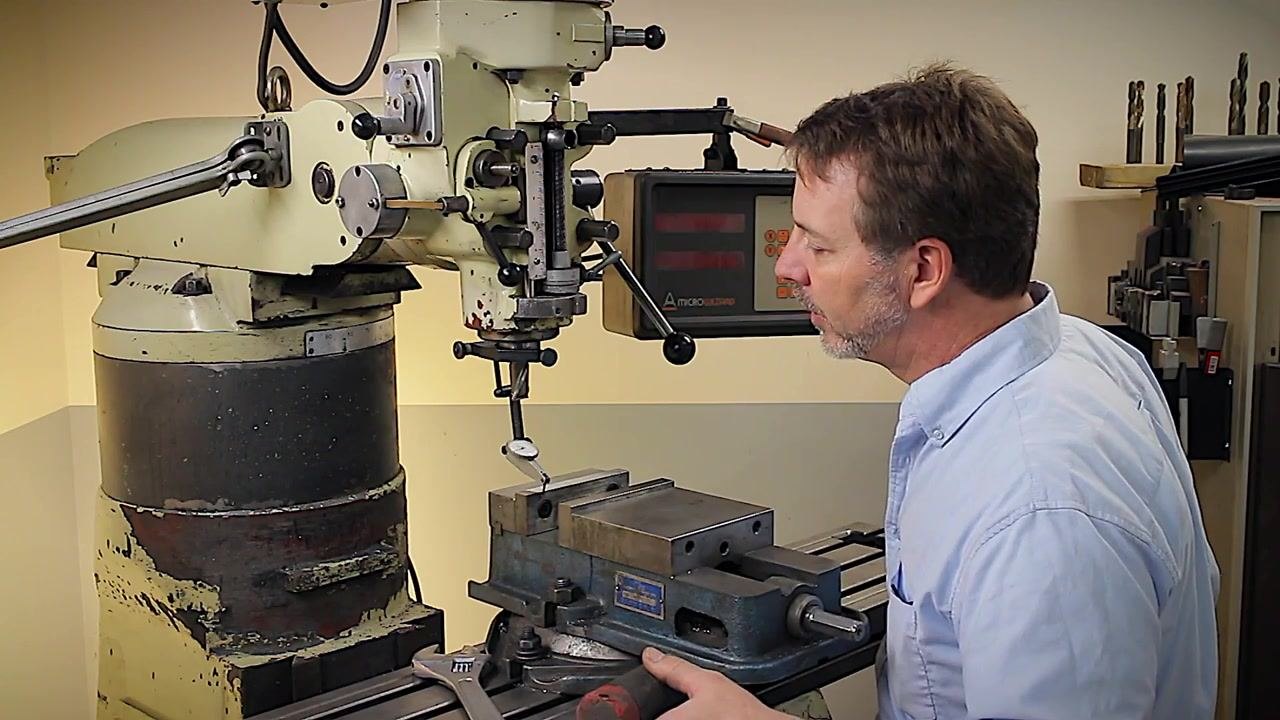

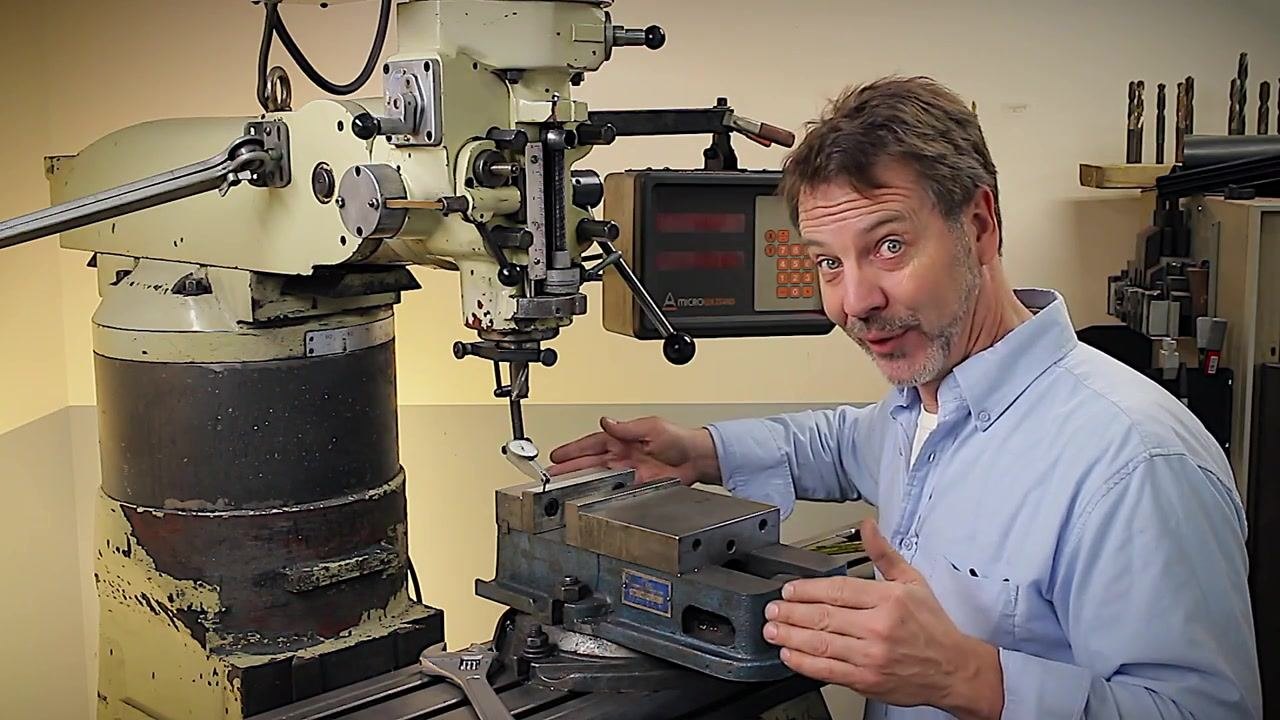

Install the precision test indicator onto the milling machine spindle or a suitable holder. Position the indicator tip against the fixed jaw of the vise so it can track any movement as the table travels.

Intentionally misalign the vise

Gently tap the vise out of alignment with the soft-faced hammer. This step lets you clearly see the effect of the realignment process. Confirm the misalignment by watching the indicator needle move as you check it.

Identify the correction direction

Based on the indicator reading, determine which side of the vise needs to be tapped to bring it back into alignment.

Activate the power feed and begin tapping

Turn on the milling machine's power feed to move the table—and the vise with it—laterally. As the table moves, lightly tap the vise with the hammer on the side that needs adjustment. Continue tapping until the indicator needle stops moving, which signals that the vise is aligned.

Note: The goal is not to reach a specific reading on the indicator. The goal is to have the needle stop moving as the table traverses, which confirms the vise is parallel to the machine axis.

Observe the indicator needle movement

Watch the test indicator needle closely as you move the milling table. Note the direction of needle movement—clockwise or counterclockwise—to determine which way the vise is misaligned.

• If the needle moves clockwise, continue tapping the vise in the direction needed to stop the movement.
• If the needle reverses and moves counterclockwise, adjust your tapping direction accordingly.

Repeat this process until the needle stops moving as the table traverses.

Fine-tune the alignment

Make small, gentle taps with the soft-faced hammer to bring the vise into alignment. Monitor the indicator needle after each tap to confirm it moves less with each adjustment. If the needle starts moving in the opposite direction, tap the vise slightly the other way to correct course.

Zero the indicator

Once the needle stops moving as the table travels, set the indicator to zero. Move the table back and forth across the vise jaw to check for consistency.

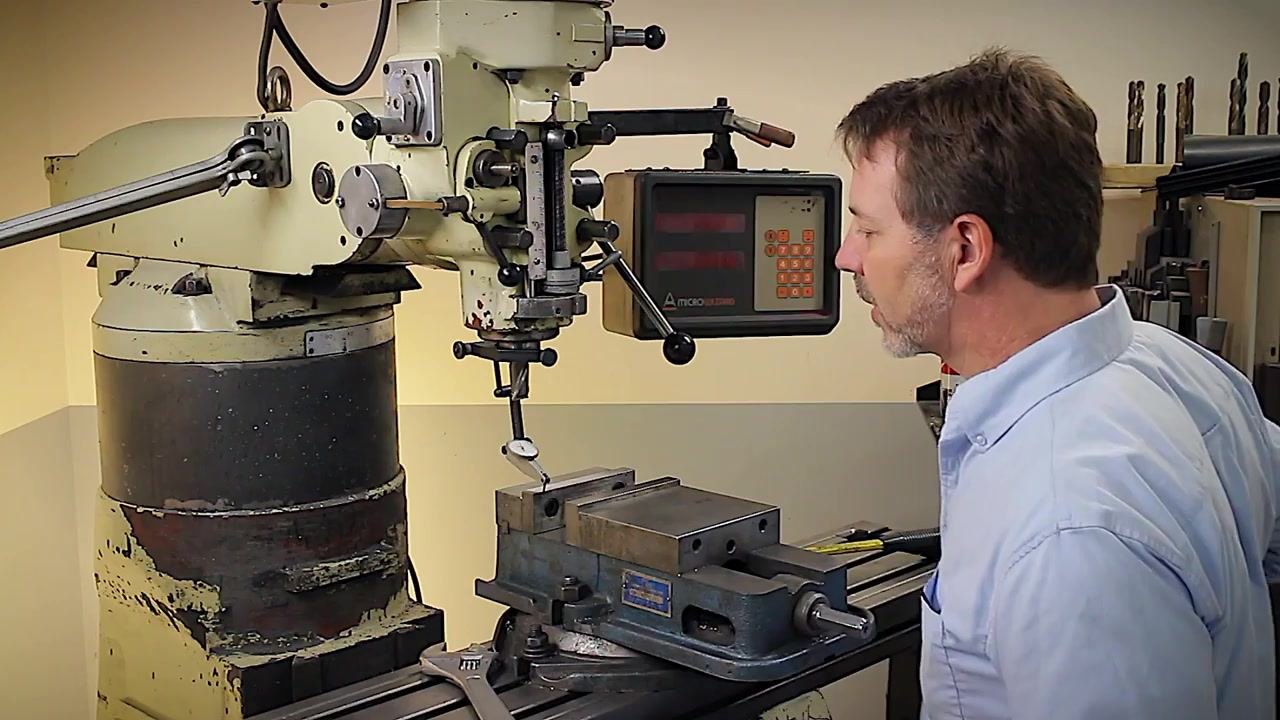

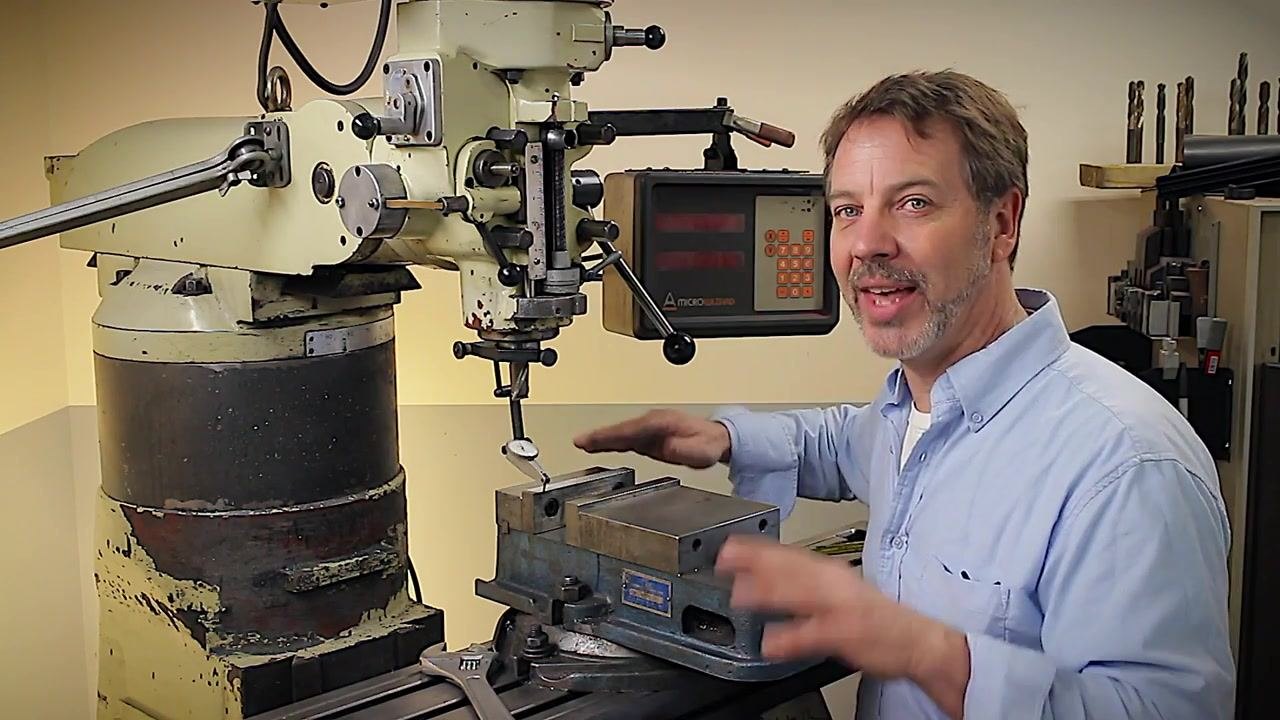

Verify alignment accuracy

Confirm that the indicator reading stays consistent across the full travel of the vise jaw. The alignment should be accurate to within a half-thousandth (0.0005") over six inches.
